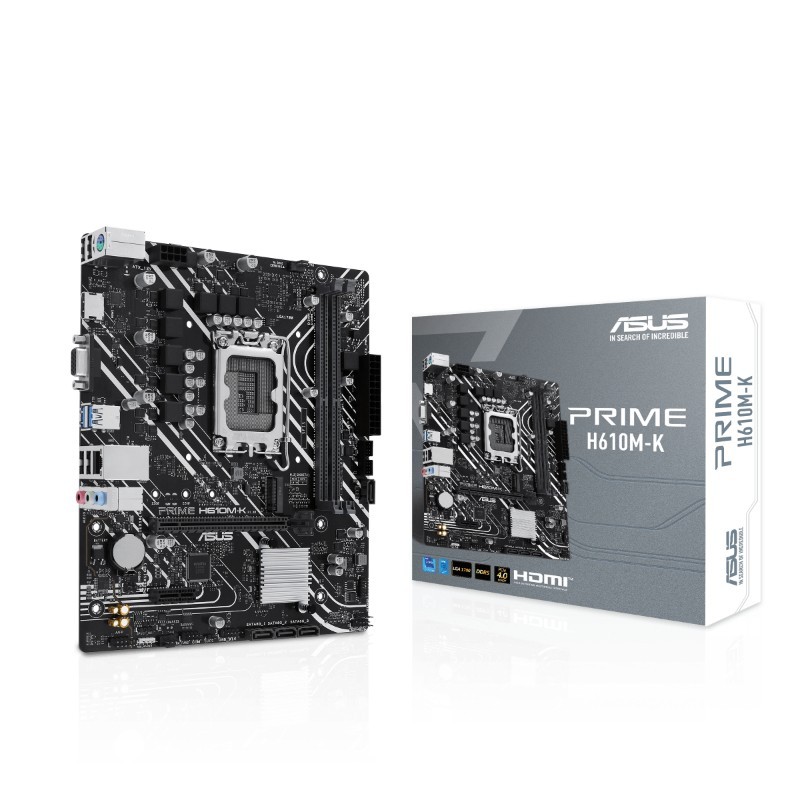

PLACA BASE PRIME H610M-K ASUS

Zócalo Intel® LGA 1700: listo para procesadores Intel® de 13.ª y 12.ª generación. Conectividad ultrarrápida: PCIe 4.0, ranura M.2 de 32 Gbps, Realtek Ethernet de 1 Gb y USB 3.2 Gen 1. Refrigeración Integral: Disipador PCH y Fan Xpert 2+. 5X Protection III: múltiples protecciones de hardware para una protección integral. Especificaciones:. CPU. . Intel® Socket LGA1700 for 13th Gen Intel® Core & 12th Gen Intel® Core, Pentium® Gold and Celeron® Processors*. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**. * Refer to www.asus.com for CPU support list.. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.. . Chipset. . Intel® H610 Chipset. . Memory. . 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*. Dual Channel Memory Architecture. Supports Intel® Extreme Memory Profile (XMP). * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.. . Graphics. . 1 x VGA port. 1 x HDMI port**. * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.. ** Supports 4K@60Hz as specified in HDMI 2.1.. . Expansion Slots. . Intel® 13th & 12th Gen Processors. 1 x PCIe 4.0 x16 slot. Intel® H610 Chipset. 1 x PCIe 3.0 x1 slot. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.. . Storage. . Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports. Intel® H610 Chipset. M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode). 4 x SATA 6Gb/s ports. . Ethernet. . 1 x Realtek 1Gb Ethernet. . USB. . Rear USB (Total 6 ports). 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A). 4 x USB 2.0 ports (4 x Type-A). Front USB (Total 4 ports). 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports. 1 x USB 2.0 header supports 2 additional USB 2.0 ports. . Audio. . Realtek 7.1 Surround Sound High Definition Audio CODEC*. - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. - Supports up to 24-Bit/192 kHz playback. Audio Features. - Audio Shielding. - Premium audio capacitors. - Dedicated audio PCB layers. * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.. . Back Panel I/O Ports. . 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A). 4 x USB 2.0 ports (4 x Type-A). 1 x VGA port. 1 x HDMI port. 1 x Realtek 1Gb Ethernet port. 3 x Audio jacks. 1 x PS/2 Keyboard/Mouse combo port. . Internal I/O Connectors. . Fan and Cooling related. 1 x 4-pin CPU Fan header. 2 x 4-pin Chassis Fan headers. Power related. 1 x 24-pin Main Power connector. 1 x 8-pin +12V Power connector. Storage related. 1 x M.2 slot (Key M). 4 x SATA 6Gb/s ports. USB. 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports. 1 x USB 2.0 header supports 2 additional USB 2.0 ports. Miscellaneous. 1 x RGB header. 1 x Clear CMOS header. 1 x Front Panel Audio header (AAFP). 1 x COM Port header. 1 x S/PDIF Out header. 1 x Speaker header. 1 x SPI TPM header (14-1pin). 1 x 10-1 pin System Panel header. . BIOS. . 128 Mb Flash ROM, UEFI AMI BIOS. . Manageability. . WOL by PME, PXE. . Form Factor. . micro-ATX Form Factor. 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
