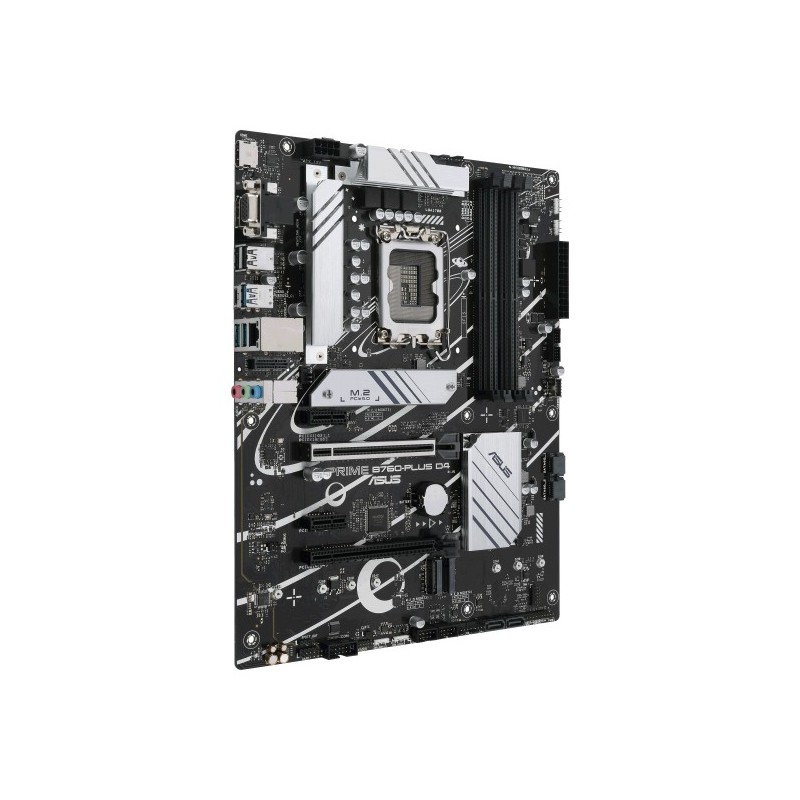

PLACA BASE PRIME B760-PLUS D4 ASUS

Las placas base de la serie Prime de ASUS están diseñadas por expertos para liberar todo el potencial de los procesadores Intel® Core de 14.ª generación. La PRIME B760-PLUS D4 cuenta con un diseño de alimentación sólido, soluciones de refrigeración completas y opciones de ajuste inteligente. Esta placa base ofrece a los usuarios y amantes de los ordenadores a medida una amplia gama de optimizaciones de rendimiento a través de funciones de firmware y software intuitivo.. . Características principales:. . Zócalo Intel® LGA 1700: preparado para los procesadores Intel® de 12.ª, 13.ª y 14ª generación.. . Conectividad ultrarrápida: PCIe 5.0, tres PCIe 4.0 M.2, Ethernet Realtek de 2,5 GB, USB 3.2 Gen 2x2 de tipo C®, USB 3.2 Gen 1 de tipo C® frontal y compatibilidad con cabezal Thunderbolt (USB4®).. . Refrigeración completa: disipadores térmicos de VRM, disipador térmico M.2, disipador térmico de PCH, cabezales de ventilador híbridos y Fan Xpert 2+.. . ASUS OptiMem: cuidadoso enrutamiento de trazado y vías para preservar la integridad de la señal y mejorar la estabilidad de la memoria.. . Iluminación RGB con Aura Sync: cabezales Gen 2 direccionables integrados y cabezal Aura RGB para tiras de LED RGB, fácilmente sincronizables con hardware compatible con Aura Sync.. . Especificaciones:. . CPU. . Intel® Socket LGA1700 for 13th Gen Intel® Core & 12th Gen Intel® Core, Pentium® Gold and Celeron®. Processors*. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**. * Refer to www.asus.com for CPU support list.. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.. . Chipset. . Intel® B760 Chipset. . Memoria. . 4 x DIMM, Max. 128GB, DDR4 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*. Dual Channel Memory Architecture. Supports Intel® Extreme Memory Profile (XMP). OptiMem. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.. . Gráficos. . 1 x DisplayPort**. 1 x VGA port. 1 x HDMI® port*** . * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.. *** Supports 4K@60Hz as specified in HDMI® 2.1.. . Ranuras de expansión. . Intel® 13th & 12th Gen Processors*. 1 x PCIe 5.0 x16 slot. Intel® B760 Chipset. 1 x PCIe 4.0 x16 slot (supports x4 mode). 2 x PCIe 3.0 x1 slots. Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.. . Almacenamiento. . Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*. Intel® 13th & 12th Gen Processors. M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode). Intel® B760 Chipset. M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode). M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode). 4 x SATA 6Gb/s ports. * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.. . Ethernet. . 1 x Realtek 2.5Gb Ethernet. . Wireless & Bluetooth. . Vertical M.2 slot only (Key E, CNVi & PCIe)*. * Wi-Fi module is sold separately.. . USB. . Rear USB (Total 6 ports). 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®). 2 x USB 3.2 Gen 2 ports (2 x Type-A). 1 x USB 3.2 Gen 1 port (1 x Type-A). 2 x USB 2.0 ports (2 x Type-A). Front USB (Total 7 ports). 1 x USB 3.2 Gen 1 connector (supports USB Type-C®). 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support 4 additional USB 2.0 ports. . Audio. . Realtek 7.1 Surround Sound High Definition Audio CODEC*. - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. - Supports up to 24-Bit/192 kHz playback. Audio Features. - Audio Shielding. - Premium audio capacitors. - Dedicated audio PCB layers. * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.. . Puertos de E/S del panel posterior. . 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®). 2 x USB 3.2 Gen 2 ports (2 x Type-A). 1 x USB 3.2 Gen 1 port (1 x Type-A). 2 x USB 2.0 ports (2 x Type-A). 1 x DisplayPort. 1 x VGA port. 1 x HDMI® port. 1 x Vertical M.2 slot (Key E). 1 x Realtek 2.5Gb Ethernet port. 3 x Audio jacks. . Conectores de E/S internos. . Fan and Cooling related. 1 x 4-pin CPU Fan header. 1 x 4-pin AIO Pump header. 3 x 4-pin Chassis Fan headers. Power related. 1 x 24-pin Main Power connector. 1 x 8-pin +12V Power connector. Storage related. 3 x M.2 slots (Key M). 4 x SATA 6Gb/s ports. USB. 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ). 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support 4 additional USB 2.0 ports. Miscellaneous. 3 x Addressable Gen 2 headers. 1 x Aura RGB header. 1 x Clear CMOS header. 1 x COM Port header. 1 x Front Panel Audio header (AAFP). 1 x S/PDIF Out header. 1 x SPI TPM header (14-1pin). 1 x 20-3 pin System Panel header with Chassis intrude function. 1 x Thunderbolt (USB4®) header. . BIOS. . 128 Mb Flash ROM, UEFI AMI BIOS. . Manejabilidad. . WOL by PME, PXE. . Factor de forma. . ATX Form Factor. 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
