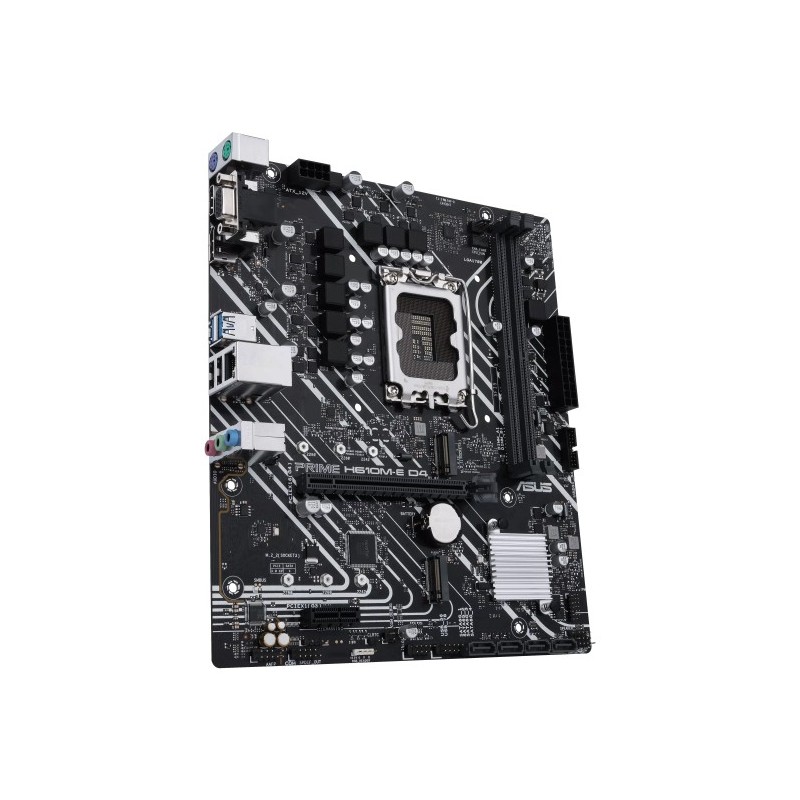

PLACA BASE PRIME H610M-E D4 CSM ASUS

Zócalo Intel® LGA 1700: Listo para procesadores Intel® de 12.ª generación. Refrigeración integral: disipador térmico PCH y Fan Xpert 2+. Conectividad ultrarrápida: ranura M.2 de 32 Gbps, Realtek 1 Gb Ethernet y USB 3.2 Gen 1. 5X Protection III: Múltiples protecciones de hardware para una protección integral. ASUS Control Center Express (ACCE) para facilitar la gestión de terminales de TI. . Especificaciones:. . CPU. . Intel® Socket LGA1700 for 12th Gen Intel® Core'', Pentium® Gold and Celeron® Processors*. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**. * Refer to www.asus.com for CPU support list.. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.. Chipset. . Intel® H610 Chipset. Memory. . 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*. Dual Channel Memory Architecture. Supports Intel® Extreme Memory Profile (XMP). * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).. . Graphics. . 1 x DisplayPort**. 1 x D-Sub port. 1 x HDMI® port***. * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.. *** Supports 4K@60Hz as specified in HDMI 2.1.. . Expansion Slots. . Intel® 12th Gen Processors. 1 x PCIe 4.0 x16 slot. Intel® H610 Chipset. 1 x PCIe 3.0 x1 slot. . Storage. . Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports. Intel® H610 Chipset. M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode). M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode). 4 x SATA 6Gb/s ports. Ethernet. . 1 x Realtek 1Gb Ethernet. . USB. . Rear USB (Total 4 ports). 2 x USB 3.2 Gen 1 ports (2 x Type-A). 2 x USB 2.0 ports (2 x Type-A). Front USB (Total 6 ports). 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support additional 4 USB 2.0 ports. . Audio. . Realtek 7.1 Surround Sound High Definition Audio CODEC*. - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. - Supports up to 24-Bit/192 kHz playback. Audio Features. - Audio Shielding. - Premium audio capacitors. - Dedicated audio PCB layers. * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.. . Back Panel I/O Ports. . 2 x USB 3.2 Gen 1 ports (2 x Type-A). 2 x USB 2.0 ports (2 x Type-A). 1 x DisplayPort. 1 x D-Sub port. 1 x HDMI® port. 1 x Realtek 1Gb Ethernet port. 3 x Audio jacks. 1 x PS/2 Keyboard (purple) port. 1 x PS/2 Mouse (green) port. . Internal I/O Connectors. . Fan and Cooling related. 1 x 4-pin CPU Fan header. 2 x 4-pin Chassis Fan headers. Power related. 1 x 24-pin Main Power connector. 1 x 8-pin +12V Power connector. Storage related. 2 x M.2 slots (Key M). 4 x SATA 6Gb/s ports. USB. 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support additional 4 USB 2.0 ports. Miscellaneous. 1 x RGB header. 1 x Clear CMOS header. 1 x Front Panel Audio header (AAFP). 1 x COM Port header. 1 x S/PDIF Out header. 1 x Speaker header. 1 x SPI TPM header (14-1pin). 1 x 10-1 pin System Panel header. BIOS. 128 Mb Flash ROM, UEFI AMI BIOS. Manageability. WOL by PME, PXE. Form Factor. . mATX Form Factor. 24.4 cm x 21.1 cm
