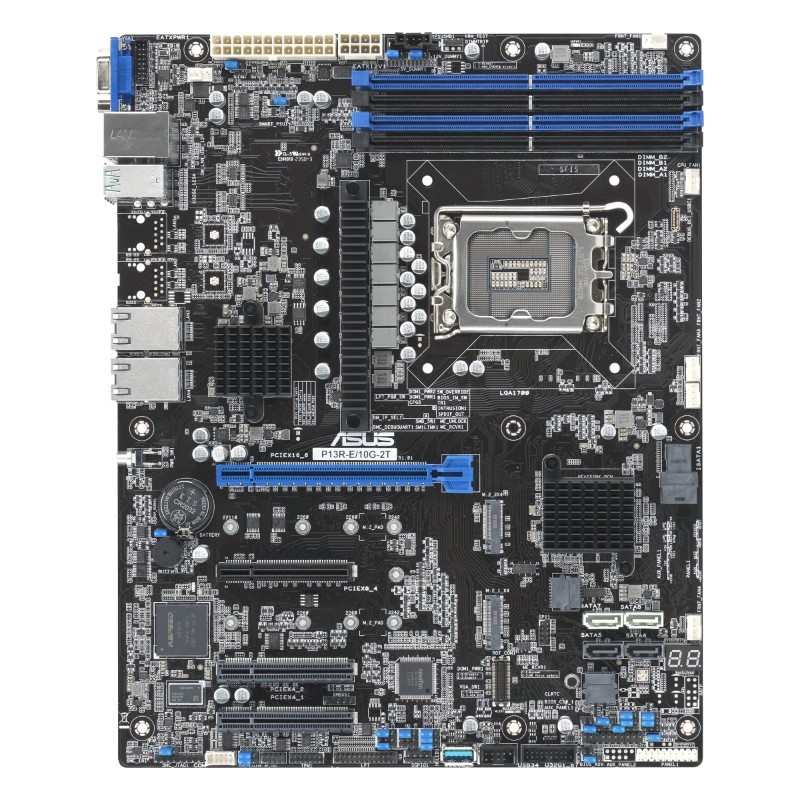

PLACA BASE ASUS SERVER P13R-E/10G-2T

Especificaciones. . Processor / System Bus. 1 x Socket LGA1700. Intel® Pentium® Processors. Intel® Xeon® E processors. . Core Logic. Intel® C266 Chipset. . Memory. Total Slots: 4 (2-channel). Capacity : Maximum up to 128GB. Memory Type : DDR5 4400 ECC UDIMM. Memory Size : 128GB. * Refer to support page for more information. . Expansion Slots. Total Slot : 4. Slot 1 : PCI-E x8 (Gen4 X4 Link). Slot 2 : PCI-E x8 (Gen4 X4 Link). Slot 4 : PCI-E x8 (Gen5 X8 Link). Slot 6 : PCI-E x16 (Gen5 X16 Link),. Auto switch to x8 link if slot 4 is occupied. . Form Factor. ATX (12''x9.6'', 305mm x 244mm). . Storage. Storage Controller :. 8 x SATA 6Gb/s ports by 4 Mini-SAS HD connectors. 2 x M.2 connector(22110,support NVMe PCIe x4 link). . Networking. 1 x Dual Port Intel X710-AT2+ 1 x Mgmt LAN. . Graphic. Aspeed AST2600 with 64MB VRAM (VGA from BMC). . On Board I/O. 1 x VGA Header (VGA from BMC). 1 x TPM header. 1 x COM port. 6 x Fan Header , 4pin. 1 x SMBus. 1 x Chassis Intruder. 2 x Front LAN LED. 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector). 2 x M.2 Connector. 1 x Internal USB3.2 Gen2 (type-A Vertical). 1 x USB3.2 Gen1 header,2 ports. 1 x USB2.0 header. . Back I/O Ports. 4 x USB 3.2 Gen2. 2 x USB 2.0. 1 x VGA port (VGA from BMC). 2 x 1 GbE LAN + 1 x Mgmt LAN. . Management Solution. On-Board ASMB11-iKVM for KVM-over-IP. . Weight. Gift Box (1-in-1). Net Weight : 0.76 KG. Gross Weight : 1.3 KG. Bulk Pack (10-in-1). Net Weight : 6.9 KG. Gross Weight : 9.5 KG. . Environment. Operation temperature: 10 ~ 50 *. Non operation temperature: -40 ~ 70 . Non operation humidity: 20% ~ 90% ( Non condensing). *The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.. . Monitoring. CPU Temperature. Fan RPM.
