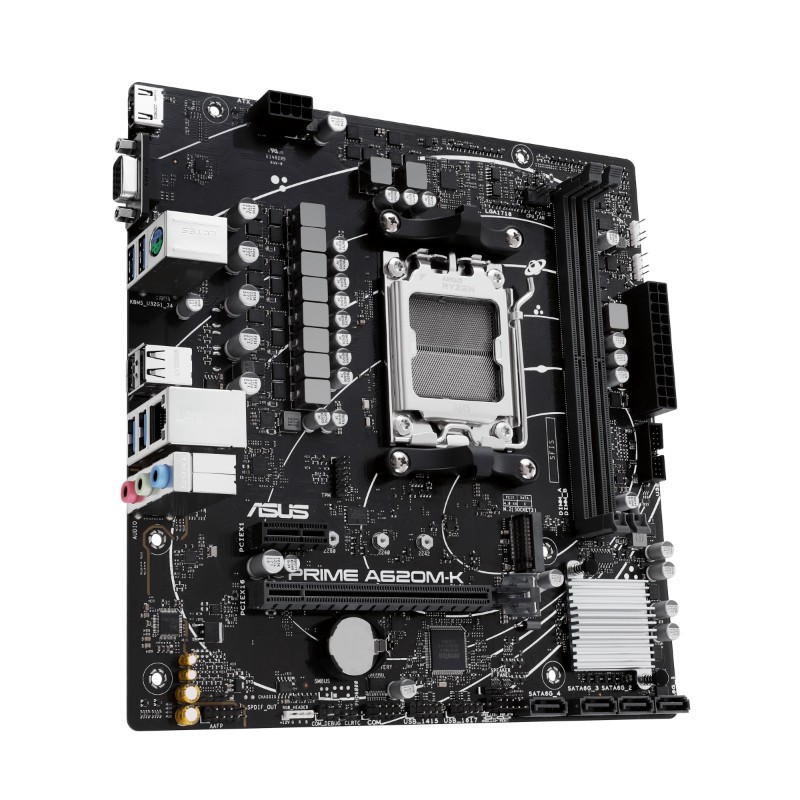

PLACA BASE PRIME A620M-K ASUS

Especificaciones:. . CPU. . AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*. Supports up to AMD 120W CPU. * Refer to www.asus.com for CPU support list.. . Chipset. . AMD A620 Chipset. . Memory. . 2 x DIMM slots, Max. 96GB, DDR5 7200+(OC)/7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*. Dual Channel Memory Architecture. Supports AMD Extended Profiles for Overclocking (EXPO). * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.. . Graphics. . 1 x VGA port. 1 x HDMI port**. * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.. ** Supports 4K@60Hz as specified in HDMI 2.1.. . Expansion Slots. . AMD Ryzen 9000 & 7000 Series Desktop Processors*. 1 x PCIe 4.0 x16 slot (supports x16 mode). AMD Ryzen 8000 Series Desktop Processors. 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**. AMD A620 Chipset. 1 x PCIe 3.0 x1 slot. * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).. ** Specifications vary by CPU types.. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.. . Storage. . Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports*. AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors. M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode). AMD A620 Chipset. 4 x SATA 6Gb/s ports. * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.. . Ethernet. . 1 x Realtek 1Gb Ethernet. . USB. . Rear USB (Total 6 ports). 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A). 2 x USB 2.0 ports (2 x Type-A). Front USB (Total 6 ports). 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support 4 additional USB 2.0 ports. . Audio. . Realtek 7.1 Surround Sound High Definition Audio CODEC*. - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. - Supports up to 24-Bit/192 kHz playback. Audio Features. - Audio Shielding. - Premium audio capacitors. - Dedicated audio PCB layers. * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.. . Back Panel I/O Ports. . 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A). 2 x USB 2.0 ports (2 x Type-A). 1 x VGA port. 1 x HDMI port. 1 x Realtek 1Gb Ethernet port. 3 x Audio jacks. 1 x PS/2 Keyboard/Mouse combo port. . Internal I/O Connectors. . Fan and Cooling related. 1 x 4-pin CPU Fan header. 1 x 4-pin Chassis Fan header. Power related. 1 x 24-pin Main Power connector. 1 x 8-pin +12V Power connector. Storage related. 1 x M.2 slot (Key M). 4 x SATA 6Gb/s ports. USB. 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support 4 additional USB 2.0 ports. Miscellaneous. 2 x Addressable Gen 2 headers. 1 x Aura RGB header. 1 x Clear CMOS header. 1 x COM Port header. 1 x Front Panel Audio header (AAFP). 1 x S/PDIF Out header. 1 x Speaker header. 1 x SPI TPM header (14-1pin). 1 x 10-1 pin System Panel header. . BIOS. . 256 Mb Flash ROM, UEFI AMI BIOS. Manageability. WOL by PME, PXE. . Form Factor. . micro-ATX Form Factor. 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)
