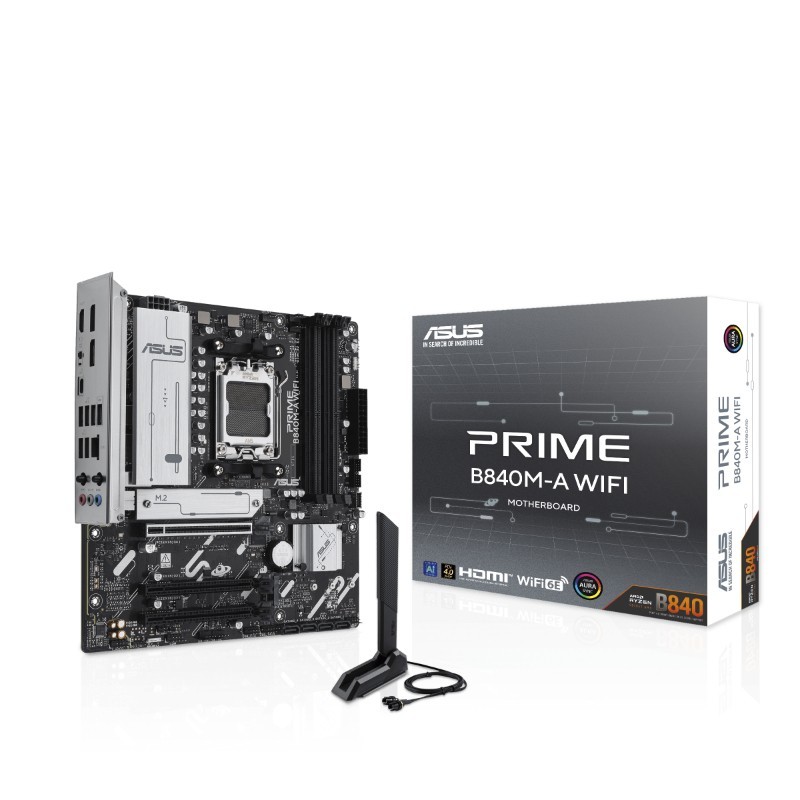

PLACA BASE PRIME B840M-A WIFI ASUS

CPU. . AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*. * Refer to https://www.asus.com/support/download-center/ for CPU support list.. . Chipset. . AMD B840 Chipset. . Memory. . 4 x DIMM slots, max. 192GB, DDR5. Supports up to 7600+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM*. Dual channel memory architecture. Supports AMD Extended Profiles for Overclocking (EXPO). ASUS Enhanced Memory Profile (AEMP). * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.. . Graphics. . 2 x DisplayPort**. 1 x HDMI port***. * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.. ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.. *** Supports 4K@60Hz as specified in HDMI 2.1.. . Expansion Slots. . AMD Ryzen 9000 & 7000 Series Desktop Processors*. 1 x PCIe 4.0 x16 slot (supports x16 mode). AMD Ryzen 8000 Series Desktop Processors. 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**. AMD B840 Chipset. 2 x PCIe 3.0 x16 slots (support x1 mode). * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).. ** Specifications vary by CPU types.. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.. . Storage. . Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports. AMD Ryzen 9000 & 7000 Series Desktop Processors. M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode). M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode). AMD Ryzen 8000 Series Desktop Processors. M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode). M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)*. AMD B840 Chipset. M.2_3 slot (Key M), type 2280 (supports PCIe 3.0 x4 mode). 4 x SATA 6Gb/s ports. * Specifications vary by CPU types.. AMD RAIDXpert2 Technology. Ryzen 9000 Series Processors: RAID 0/1/5/10. Ryzen 8000 Series Processors: RAID 0/1. Ryzen 7000 Series Processors: RAID 0/1/10. . Ethernet. . 1 x Realtek 2.5Gb Ethernet. ASUS LANGuard. . Wireless & Bluetooth. . Wi-Fi 6E. 2x2 Wi-Fi 6E (802.11ax). Supports 2.4/5/6GHz frequency band*. Bluetooth® v5.3**. * WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later.. ** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.. . USB. . Rear USB (Total 7 ports). 2 x USB 10Gbps ports (2 x Type-A). 1 x USB 5Gbps port (1 x USB Type-C®). 4 x USB 2.0 ports (4 x Type-A). Front USB (Total 7 ports). 1 x USB 5Gbps connector (supports USB Type-C®). 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports. 2 x USB 2.0 headers support 4 additional USB 2.0 ports. * USB Type-C® power delivery output: max. 5V/3A. . Audio. . Realtek 7.1 Surround Sound High Definition Audio CODEC*. - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. - Supports up to 24-Bit/192 kHz playback. Audio Features. - Audio Shielding. - Premium audio capacitors. - Dedicated audio PCB layers. * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.. . Back Panel I/O Ports. . 2 x USB 10Gbps ports (2 x Type-A). 1 x USB 5Gbps port (1 x USB Type-C®). 4 x USB 2.0 ports (4 x Type-A). 2 x DisplayPort. 1 x HDMI port. 1 x Wi-Fi module. 1 x Realtek 2.5Gb Ethernet port. 3 x Audio jacks. 1 x BIOS FlashBack button. . Internal I/O Connectors. . Fan and Cooling Related. 1 x 4-pin CPU Fan header. 1 x 4-pin CPU OPT Fan header. 1 x 4-pin AIO Pump header. 3 x 4-pin Chassis Fan headers. Power Related. 1 x 24-pin Main Power connector. 1 x 8-pin +12V CPU Power connector. Storage Related. 3 x M.2 slots (Key M). 4 x SATA 6Gb/s ports. USB. 1 x USB 5Gbps connector (supports USB Type-C® ). 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports. 2 x USB 2.0 headers support 4 additional USB 2.0 ports. Miscellaneous. 3 x Addressable Gen 2 headers. 1 x Clear CMOS header. 1 x COM Port header. 1 x Front Panel Audio header (F_AUDIO). 1 x S/PDIF Out header. 1 x SPI TPM header (14-1 pin). 1 x 10-1 pin Front Panel System header. . BIOS. . 256 Mb Flash ROM, UEFI AMI BIOS. . Manageability. . WOL by PME, PXE. . Form Factor. . micro-ATX Form Factor. 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
