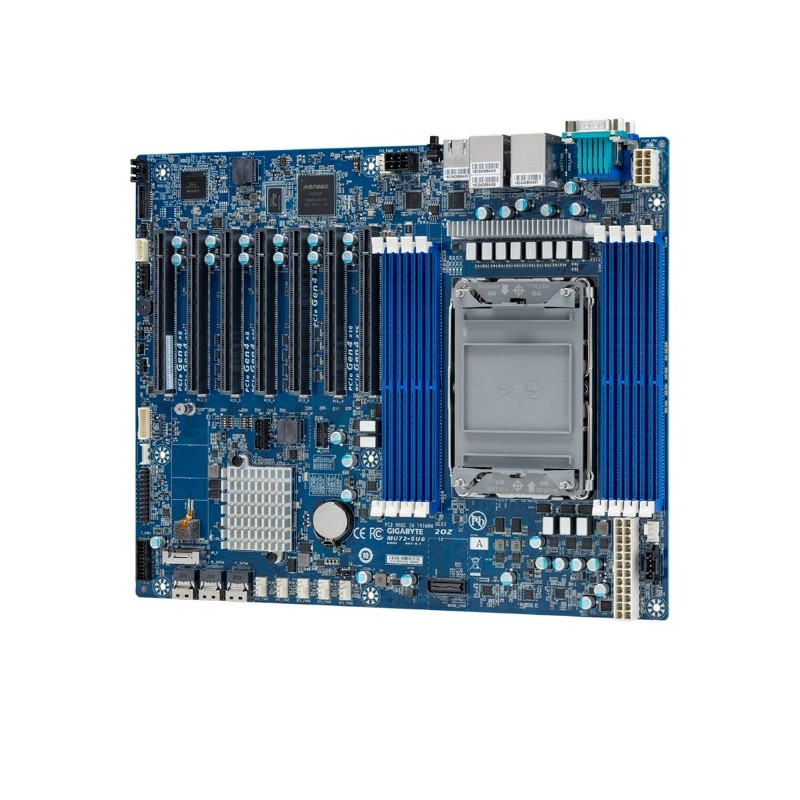

PLACA BASE GIGABYTE SERVER MU72-SU0

Procesadores escalables Intel® Xeon® de 3.ª generación. Familia de procesadores Intel® Xeon® W- 3300. Procesador único, tecnología de 10 nm. RDIMM/LRDIMM DDR4 de 8 canales por procesador, 8 x DIMM. Admite la memoria persistente Intel® Optane serie 200. Conjunto de chips Intel® C621A. Puerto LAN dual de 1 Gb/s (Intel® I210 -AT). 1 x puerto de gestión dedicado. 3 x SlimSAS para 12 x puertos SATA de 6 Gb/s. 1 x ranura M.2 con interfaz PCIe Gen3 x4. Hasta 7 x ranuras de expansión PCIe Gen4. . Especificaciones:. . Form Factor. . ATX. 304.8W x 244D (mm). . CPU. . 3rd Generation Intel® Xeon® Scalable Processors. Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor. Single processor, 10nm technology. CPU TDP up to 270W. Intel® Xeon® W-3300 Processor Family. CPU TDP up to 270W. . Socket. . 1 x LGA 4189. Socket P+. . Chipset. . Intel® C621A Chipset. . Memory. . 8 x DIMM slots. DDR4 memory supported only. 8-channel memory architecture per processor. RDIMM modules up to 128GB supported. LRDIMM modules up to 128GB supported. 3DS RDIMM/LRDIMM modules up to 256GB supported. 1.2V modules: 3200/2933/2666 MHz. . LAN. . 2 x 1Gb/s LAN ports (Intel® I210-AT). 1 x 10/100/1000 management LAN. . Video. . Integrated in Aspeed® AST2600. 2D Video Graphic Adapter with PCIe bus interface. 1920x1200@60Hz 32bpp, DDR4 SDRAM. . Audio. . N/A. . SAS. . N/A. . SATA. . 3 x SlimSAS for 12 x SATA III 6Gb/s ports. . RAID. . Intel® SATA RAID 0/1/10/5. . Expansion Slots. . Slot_7: 1 x PCIe x16 (Gen4 x16 bus) slot. Slot_6: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_5. Slot_5: 1 x PCIe x16 (Gen4 x0 or x8 bus) slot. Slot_4: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_3. Slot_3: 1 x PCIe x16 (Gen4 x0 or x8 bus) slot. Slot_2: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_1. Slot_1: 1 x PCIe x16 (Gen4 x0 or x8 bus) slot. 1 x M.2 slot:. - M-key. - PCIe Gen3 x4 per slot. - Supports NGFF-2280 cards. . Internal I/O. . 1 x 24-pin ATX main power connector. 1 x 8-pin ATX 12V power connector. 1 x 6-pin ATX 12V power connector (for PCIe slot). 3 x SlimSAS connectors. 1 x M.2 slot. 1 x CPU fan header. 6 x System fan headers. 1 x USB 3.0 header. 1 x TPM header. 1 x VROC connector. 1 x Front panel header. 1 x Buzzer. . Rear I/O. . 4 x USB 3.0. 1 x VGA. 1 x COM. 2 x RJ45. 1 x MLAN. 1 x ID button with LED. . TPM. . 1 x TPM header with SPI interface. Optional TPM2.0 kit: CTM010. . OS Compatibility. . Windows Server 2016. Windows Server 2019. Windows Server 2022. Red Hat Enterprise Linux 7.9 (x64) or later. Red Hat Enterprise Linux 8.2 (x64) or later. Red Hat Enterprise Linux 9.0 (x64) or later. SUSE Linux Enterprise Server 12 SP5 (x64) or later. SUSE Linux Enterprise Server 15 SP2 (x64) or later. Ubuntu 20.04 LTS (x64) or later. Ubuntu 22.04 LTS (x64) or later. VMware ESXi 6.7 Update3 P03 or later. VMware ESXi 7.0 Update2 or later. VMware ESXi 8.0 or later. Citrix Hypervisor 8.2.0 or later. . Board Management. . Aspeed® AST2600 management controller. GIGABYTE Management Console (AMI MegaRAC SP-X) web interface. Dashboard. HTML5 KVM. Sensor Monitor (Voltage, RPM, Temperature, CPU Status etc.). Sensor Reading History Data. FRU Information. SEL Log in Linear Storage / Circular Storage Policy. Hardware Inventory. Fan Profile. System Firewall. Power Consumption. Power Control. LDAP / AD / RADIUS Support. Backup & Restore Configuration. Remote BIOS/BMC/CPLD Update. Event Log Filter. User Management. Media Redirection Settings. PAM Order Settings. SSL Settings. SMTP Settings. . PSU Connectors. . 1 x 24-pin ATX main power connector. 1 x 8-pin ATX 12V power connector. 1 x 6-pin PCIe power connector. . Operating Properties. . Operating temperature: 10ºC to 40ºC. Operating humidity: 8-80% (non-condensing). Non-operating temperature: -40ºC to 60ºC. Non-operating humidity: 20%-95% (non-condensing)
