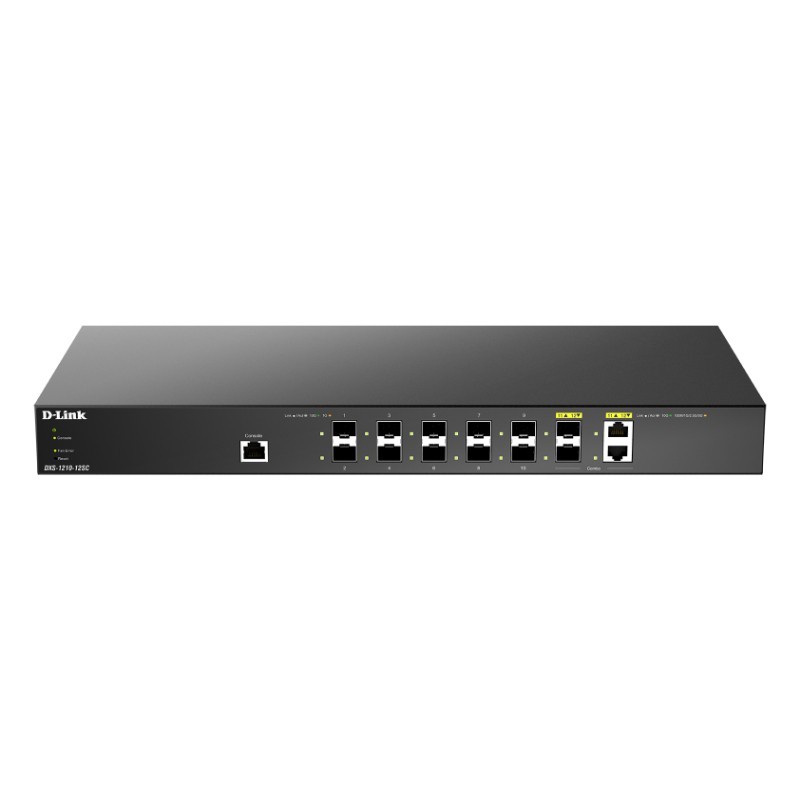

D-LINK SWITCH SMART 10 PUERTOS 10Gbit + 2 PUERTOS 10Gbit SFP+

Especificaciones. Todos los puertos cobre y uplinks SFP+ son Multi-Gigabit 100/1000/2.5G/5G/10G. Administración de Layer 2 con funciones de Layer 3 Lite. QoS avanzado, control de ancho de banda y VLANs. Gestión mediante interfaz web o puerto de consola (Full CLI). Static Routing y MSTP. Garantía de por vida limitada de D-Link después del registro. Gestión centralizada con puntos de acceso Wi-Fi D-Link con el software gratuito Nuclias Connect. HW Version. B1. Interfaces. 10 x SFP+ ports. 2 x 100/1000/2.5G/5G/10G. BASE-T)/SFP+ combo ports. Console Port. RJ-45 console port. Port Standard & Functions. IEEE 802.3u 100BASE-TX Fast Ethernet. IEEE 802.3ab 1000BASE-T Gigabit Ethernet. IEEE 802.3bz 5Gbps and 2.5Gbps Ethernet Over Copper Twisted Pair Cable. IEEE 802.3an 10GBASE-T 10 Gigabit Ethernet. IEEE 802.3ae 10GbE over fiber. IEEE 802.3z 1000BASE-X. Auto MDI/MDIX support for 100BASE-T/1GBASE-T/2.5GBASE-T/5GBASE-T/10GBASE-T. Network Cables for 10GBASE-T. Cat. 6 (30 m max). Cat. 6A or Cat. 7 (100 m max). Media Interface Exchange. Auto MDI/MDIX adjustment for all twisted-pair ports. Switching Capacity. 240 Gbps. Maximum Packet Forwarding Rate. 178.56 Mpps. Transmission Method. Store-and-forward. MAC Address Table. Up to 32,000 entries per device. AC Input. 100 to 240 VAC. Maximum Power Consumption. 27.4 W. Standby Power Consumption. 11.2 W. Operating Temperature. -5 to 50 ºC (23 to 122 ºF). Storage Temperature. -40 to 70 ºC (-40 to 158 ºF). Operating Humidity. 0% to 95% non-condensing. Storage Humidity. 0% to 95% non-condensing. Dimensions (L x W x H). 440 x 210 x 44 mm. Weight. 2.718 kg (5.99 lbs). Diagnostic LEDs. Link/Activity/Speed (Per 10GBASE-T port). Link/Activity/Speed (Per 10G SFP+ port). Power. Console. Fan error. EMI/EMC Certifications. CE, FCC, IC, RCM, VCCI, BSMI. Safety Certifications. cUL, CB, BSMI. L2 Features. MAC Address Table. Up to 32K entries. Static MAC Addresses. 128. IGMP Snooping. IGMP v1/v2 Snooping. IGMP v3 awareness. Supports 384 IGMP groups. Supports at least 128 static multicast addresses. Per VLAN IGMP Snooping. Support host-based fast leave. MLD Snooping. MLD v1 Snooping. MLD v2 awareness. Support 384 groups. Support 128 static multicast addresses. Support host-based fast leave. LLDP. LLDP-MED. Spanning Tree Protocol. 802.1D STP. 802.1w RSTP. 802.1s MSTP. Flow Control. 802.3x Flow Control. HOL Blocking Prevention. Port Mirroring. One-to-One. Many-to-One. Supports Mirroring for Tx/Rx/Both. 802.3ad Link Aggregation:. Maximum of 8 groups/8 ports per group. Jumbo Frame. Up to 10KB. Loopback Detection. ERPS (Ethernet Ring Protection Switching). . VLAN. 802.1Q VLAN. Port-based VLAN. Configurable VID. 1~4094. Voice VLAN. Auto Surveillance VLAN. Asymmetric VLAN. 4K VLAN Groups. . Quality of Service (QoS). 802.1p Priority Queue. 8 queues per port. Queue Handling. Strict. Weighted Round Robin (WRR). Bandwidth Control. Port-based (Ingress/Egress, min. granularity 64 Kbps). . L3 Features. . IP Interface. Supports 8 IPv4/v6 interfaces. ARP. 768 Static ARP. Default Route. IPv6 Neighbor Discovery (ND). Static Route. Max. 64 IPv4 entries. Max. 64 IPv6 entries. . Access Control List (ACL). Max. 50 access list. Max. 256 ACL rules. ACL based on. 802.1p priority. VLAN. MAC address. Ether type. IP address. DSCP. Protocol type. TCP/UDP port number. IPv6 flow label. . Security. Broadcast/Multicast/Unicast Storm Control. D-Link Safeguard Engine. DHCP Server Screening. Port Security. Supports up to 6656 MAC addresses per port. Duplicate Address Detection. Traffic Segmentation. SSL. Support v1/v2/v3. Support IPv4/IPv6. DoS Attack Prevention. SSH. . Operations, Administration, and Management (OAM). Cable Diagnostics. . Authentication, Authorization, and Accounting (AAA). 802.1X Authentication. Support Dynamic VLAN Assignment. Identity-driven Policy (VLAN/ACL/QoS) Assignment. Supports local/RADIUS database. Supports Port-based access control. Supports Host-based access control. Supports EAP, OTP, TLS, TTLS, PEAP. Support IPv4/IPv6 RADIUS Server. Guest VLAN. Authentication for management access. . Management. Web-based GUI. Full CLI. Telnet Server. TFTP Client. Configurable MDI/MDIX. SNMP. Supports v1/v2c/v3. SNMP Trap. LLDP. LLDP-MED. System Log. BootP/DHCP Client. SNTP. ICMP v6. IPv4/v6 Dual Stack. RMON v1. Trusted Host. Dual Images. Dual Configurations. Debug command. Green V3.0 Technology Power Saving by:. LED Shutoff. System Hibernation. Port Shutoff. . MIB/RFC Standards RFC2021 RMONv2 MIB. RFC2460 IPv6. RFC2461, RFC4861 Neighbor Discovery for IPv6. RFC2462, RFC4862 IPv6 Stateless Address Auto-configuration (SLAAC). RFC2463, RFC4443 ICMPv6. RFC2464 IPv6 over Ethernet and definition. RFC2465 IPv6 MIB. RFC2466 ICMPv6 MIB. RFC2474, RFC3168, RFC3260 Definition of the DS Field in the IPv4 and IPv6 Headers. RFC2571 SNMP Framework. RFC2572 SNMP Message Processing and Dispatching. RFC2573 SNMP Applications. RFC2574 User-based Security Model for SNMPv3. RFC2618 RADIUS Authentication Client MIB. RFC2668 802.3 MAU MIB. RFC2674, RFC4363 802.1p MIB. RFC271, RFC1757, RFC2819 RMON MIB. RFC2893, RFC4213 IPv4/IPv6 dual stack function. RFC2925 Ping & TRACEROUTE MIB. RFC3513, RFC4291 IPv6 Addressing Architecture. RFC4022 MIB for TCP. RFC4113 MIB for UDP. RFC4293 IPv6 SNMP Mgmt Interface MIB. RFC4884 Extended ICMP to Support Multi-Part Messages. RFC768 UDP. RFC792 ICMPv4. RFC793 TCP. RFC826 ARP
