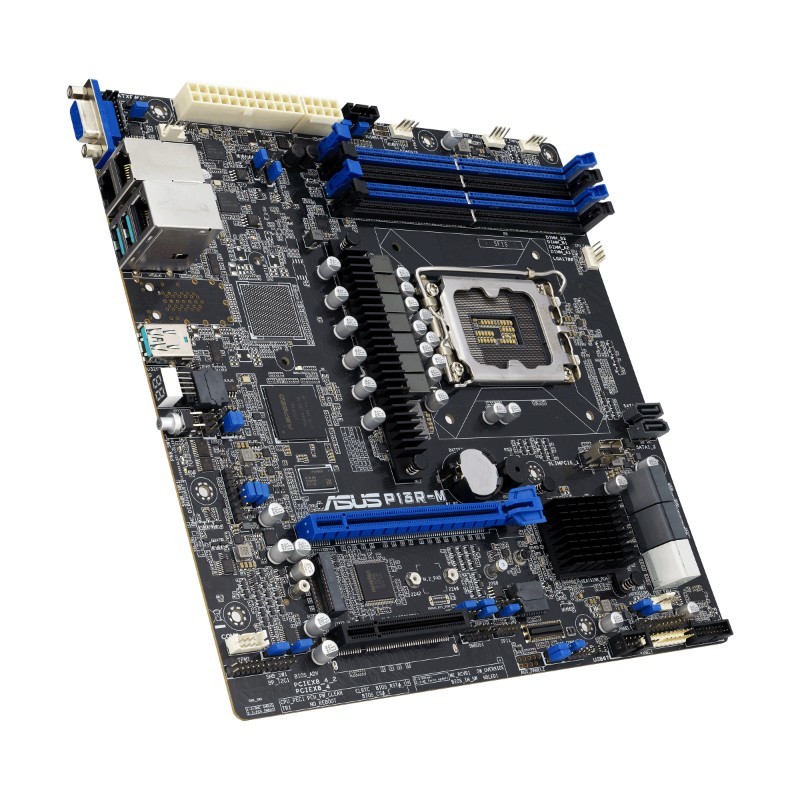

PLACA BASE ASUS SERVER P13R-M

Especificaciones:. . Processor / System Bus. . . 1 x Socket LGA1700. Intel® Pentium® Processors. Intel® Xeon® E processors. . Core Logic. . Intel® C262 Chipset. . Memory. . Total Slots :. 4 (2-channel). Capacity :. Maximum up to 128GB UDIMM. Memory Type :. DDR5 4400/4000/3600 UDIMM. Memory Size :. 32GB, 16GB, 8GB. * Refer to support page for more information. . Expansion Slots. . Total Slot : 2. Slot Location 4 : PCI-E x8 (Gen4 X4 Link). Slot Location 6 : PCI-E x16 (Gen5 X16 Link). . Form Factor. . Mirco ATX (9.6''x9.6'', 244mm x 244mm). . Storage. . Storage Controller :. 8 x SATA3 6Gb/s ports. 1 x M.2 connector (2280/2260/2242). SAS Controller :. ASUS PIKE II 3008-8i 8-port SAS 12G RAID card. ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card. . Networking. . 2 x Intel® I210AT + 1 x Mgmt LAN. . Graphic. . Aspeed AST2600 with 64MB VRAM. . On Board I/O. . 1 x TPM header. 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector). 3 x USB3.2 Gen2 ports. 1 x USB3.2 Gen1 (header, 2 ports). 1 x USB 2.0 pin header (header, 2 ports). 6 x Fan Header , 4pin. 1 x SMBus. 1 x Chassis Intruder. 4 x Front LAN LED. 1 x Serial Port Header. 1 x M.2 Connector. 1 x VGA Header. 1 x Onboard header for optional management card. . Back I/O Ports. . 3 x USB 3.2 Gen 2. 1 x VGA Port. 2 x GbE LAN + 1 x Mgmt LAN. . Management Solution. . ASUS Control Center Enterprise (Optional). Onboard ASMB11-iKVM for KVM-over-Internet. . Environment. . Operation temperature: 10 ~ 50 *. Non operation temperature: -40 ~ 70 . Non operation humidity: 20% ~ 90% ( Non condensing). *The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.
